Pressure Sensor for water and gas, G1/4"

  • Sensor
  • Output Type
  • Connection

25.00 € 25.00 € 25.0 EUR w/o VAT

25.00 €

Option not available

This combination does not exist.

Add to Cart

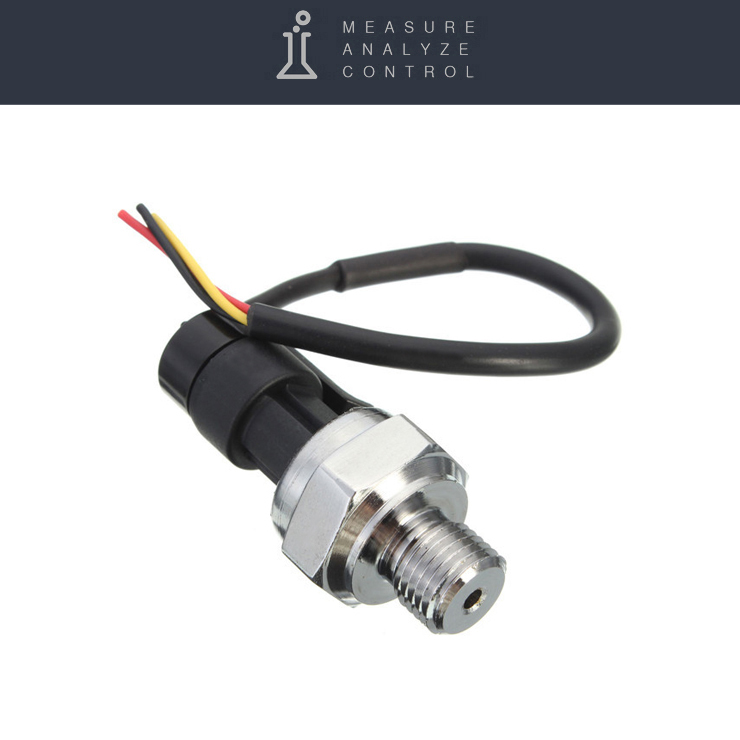

Analog pressure sensor for water or gas up to 1.2 MPa

Sensor: Pressure of water/gas
Output Type: Analog 0.5 . . 4.5V
Connection: DN10 (G1/4'')


Buy now and install in a couple of days
Two weeks money-back guarantee
One year warranty

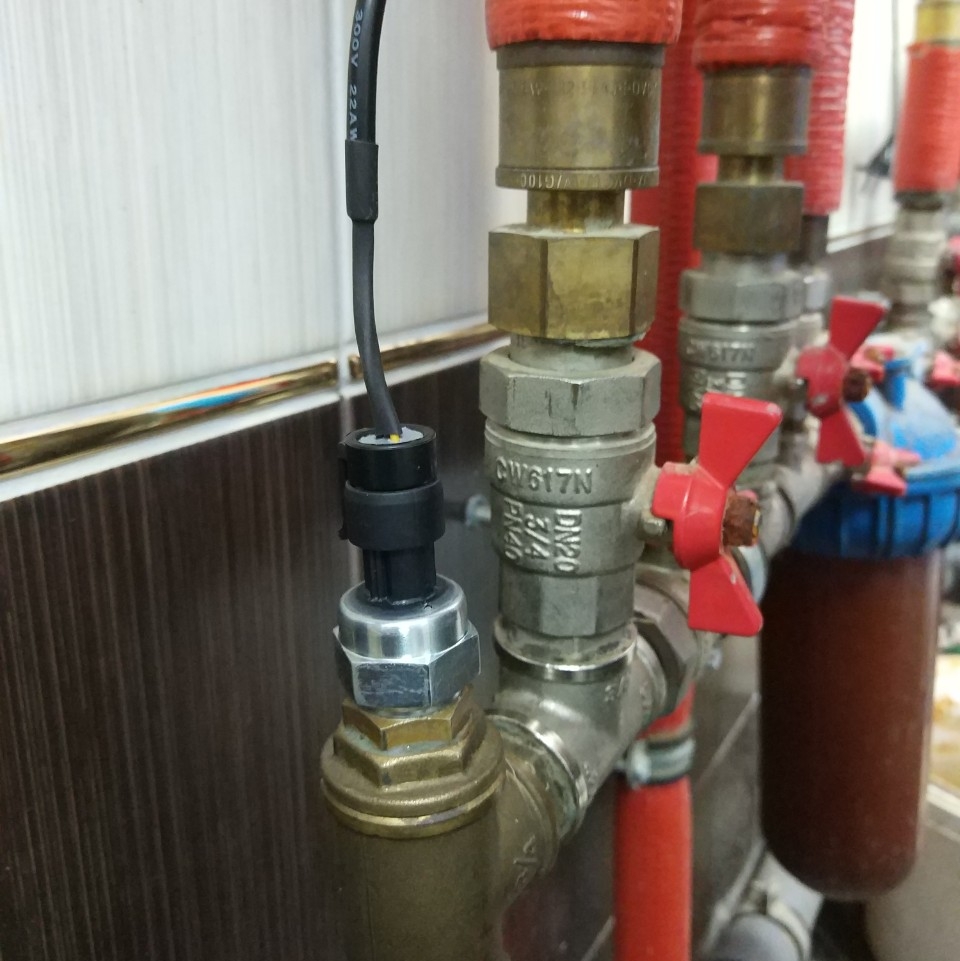

Pressure sensor for water, air and gas

The sensor is connected to analog input of the smart meter smart-MAIC D105.

Wiring diagram and settings in the Knowledge Base »

A sensor with standard 1/4" plumbing thread for measuring water or air pressure up to 1.2 MPa/12 bar/175 psi.


Specifications:

Operating pressure range: 0 - 1.2 MPa / 12 bar / 175 psi

Measurement error: ± 3%

Short-term pressure: 2.4Mpa

Operating temperature, range: 0 - 85°C

Working voltage: 5V DC

Output voltage: 0.5 - 4.5V DC

Material: steel
