smart-MAIC D103-1 CT Ring WiFi 3−Lines Energy monitor

  • Version
  • Current Transformer

133.00 € 133.00 € 133.0 EUR w/o VAT
Free Shipping within the EU

133.00 €

Option not available

This combination does not exist.

Add to Cart

3-Lines Energy monitor WiFi CTs Rings smart-MAIC D103-1

Current Transformer: Ring 100A

Alternative Products:

Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

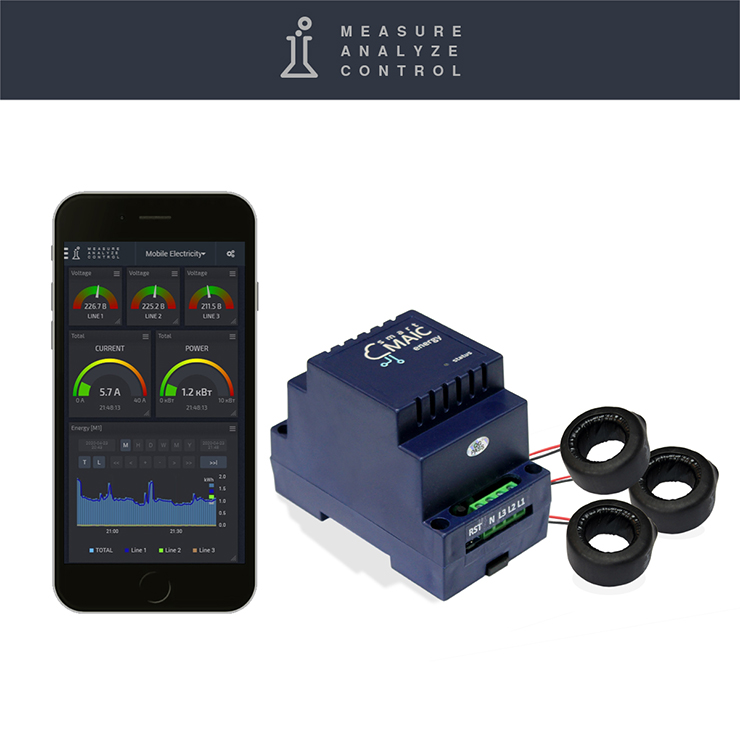

Energy monitor smart-MAIC D103 for 3−Lines grid
with Current Transformer type Ring up to 100A

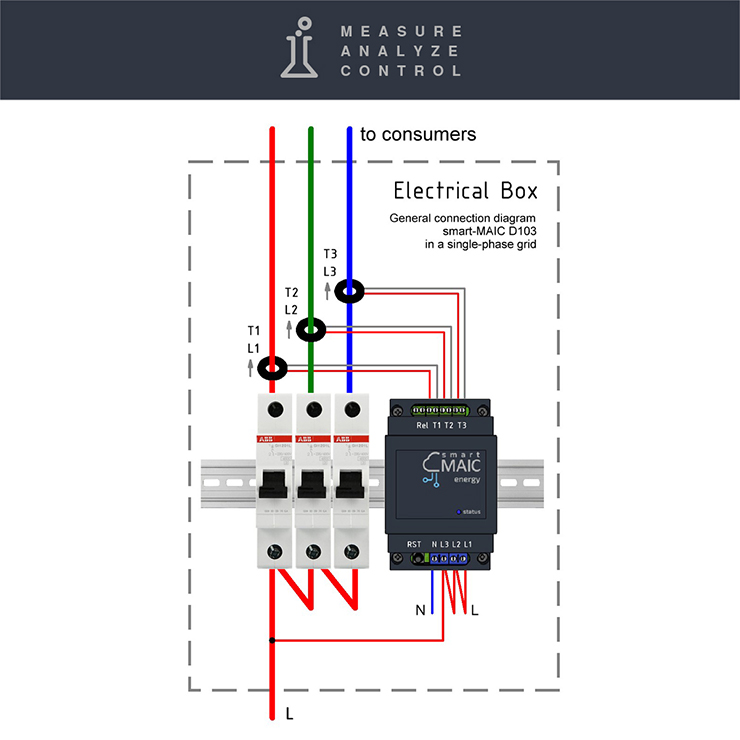

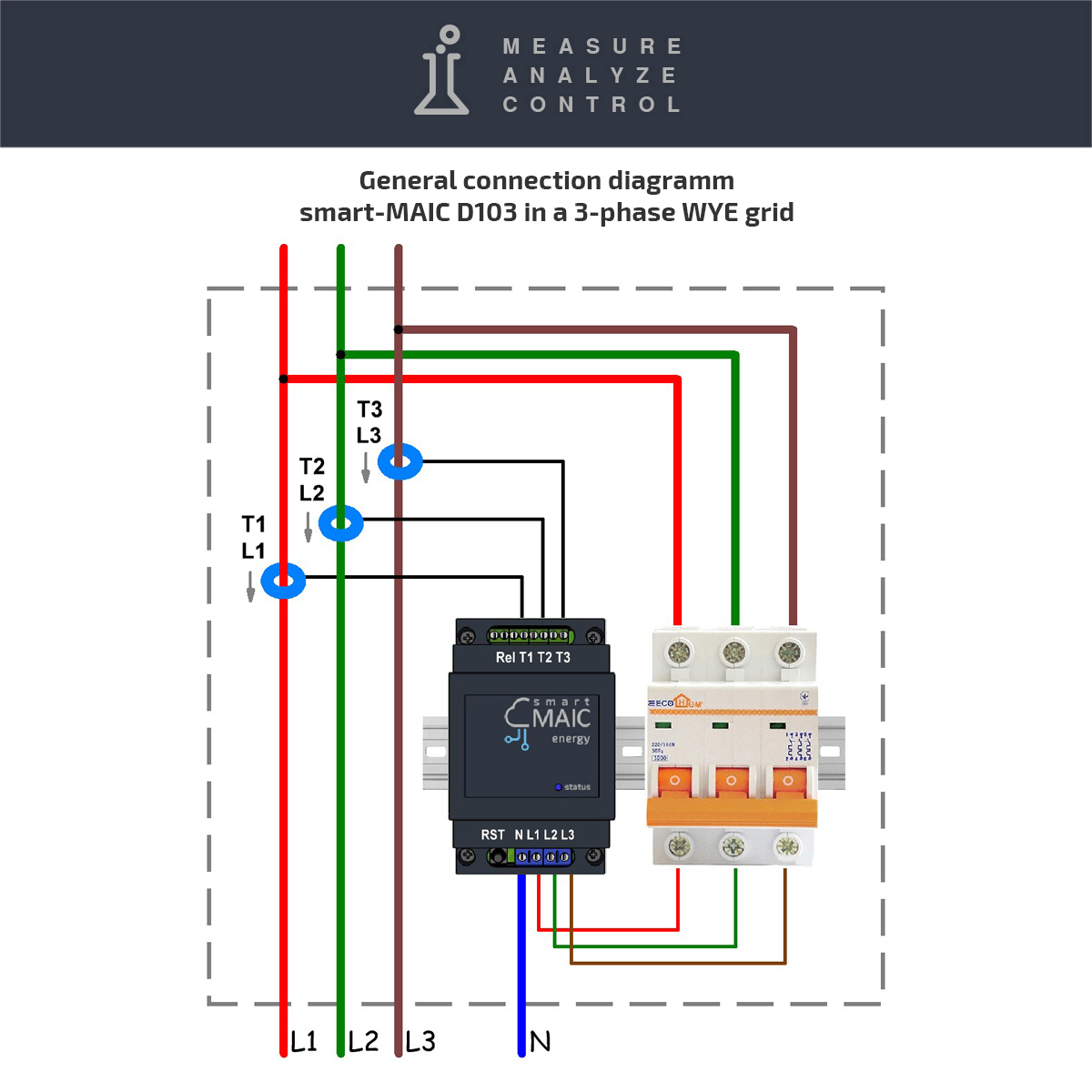

The energy monitor is a ready-to-use device for 3-phase WYE grid with neutral or 1-phase three-point measurement and uses three ring current transformers up to 100A.
If you read the manual, it's not difficult to install. Connect the energy meter to your Wi-Fi point and the data will be sent to the cloud server once a minute.

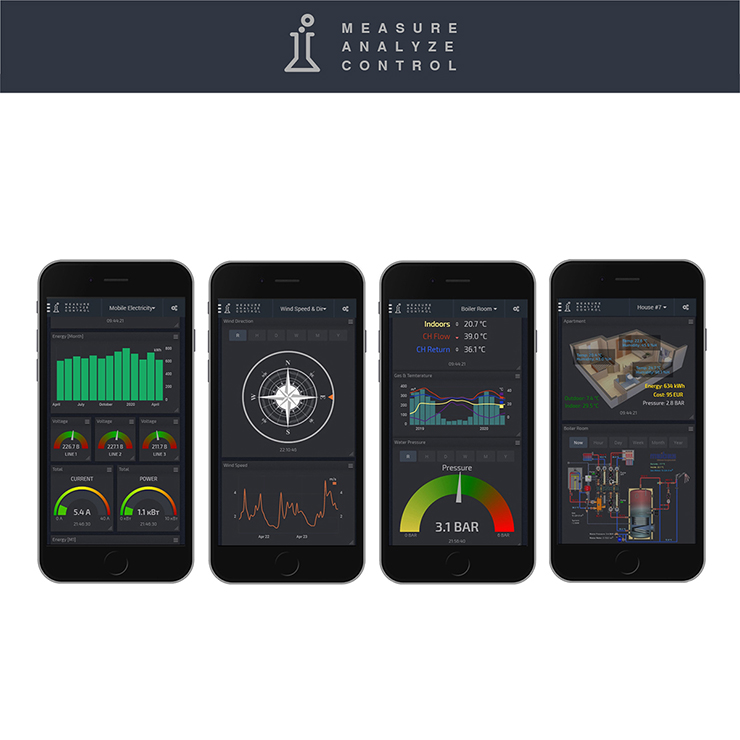

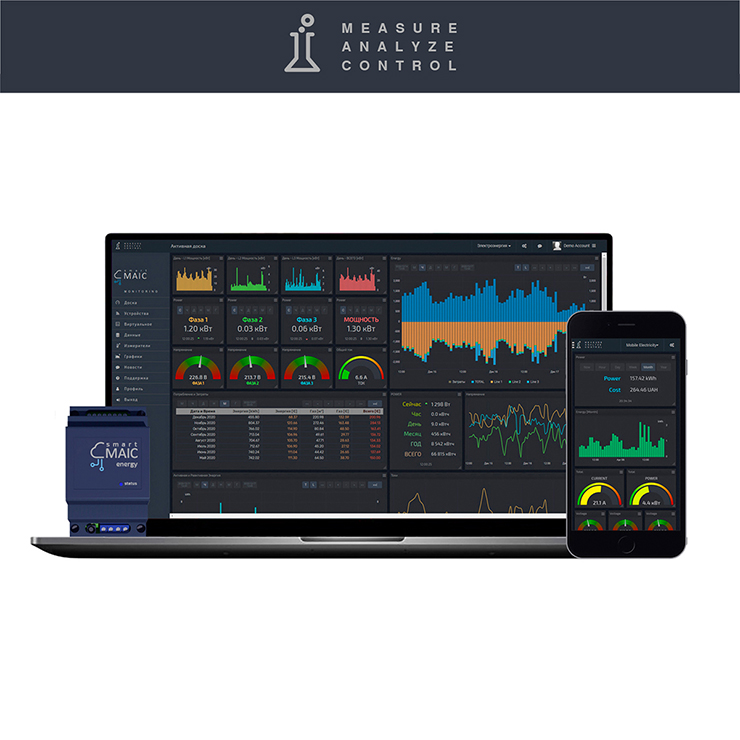

You can analyze electrical energy, power, voltage, current using the Dashboard and with no time limits.

Smart meter D103 produced in Standard and Extended version.

In the Extended version, the smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT.
In the Standard version, the device measures one-way power and 1 minute data intervals for API and MQTT.

Key features:

  • Wi-Fi Wireless interface
  • GSM Cellular (optional »)
  • Cloud data server and the Dashboard
  • One-Minute data analysis and visualization »
  • Online / Offline data without time limits
  • High accuracy ±0.5% F.S. (0.5 Class)
  • Built-in relay with condition control
  • API interface for developers
  • MQTT remote client
  • DIN Rail mounting

Measured Parameters:
  • Voltage, [V]
  • Current, [A]
  • Active Power, [W]
  • Reverse Active Power, [rW] (Extended ver.)
  • Active Energy, [Wh]
  • Reverse Active Energy, [rWh] (Extended ver.)
  • Power Factor (cosФ), [PF]


 Current Transformer Rating
  50mA . . 100A

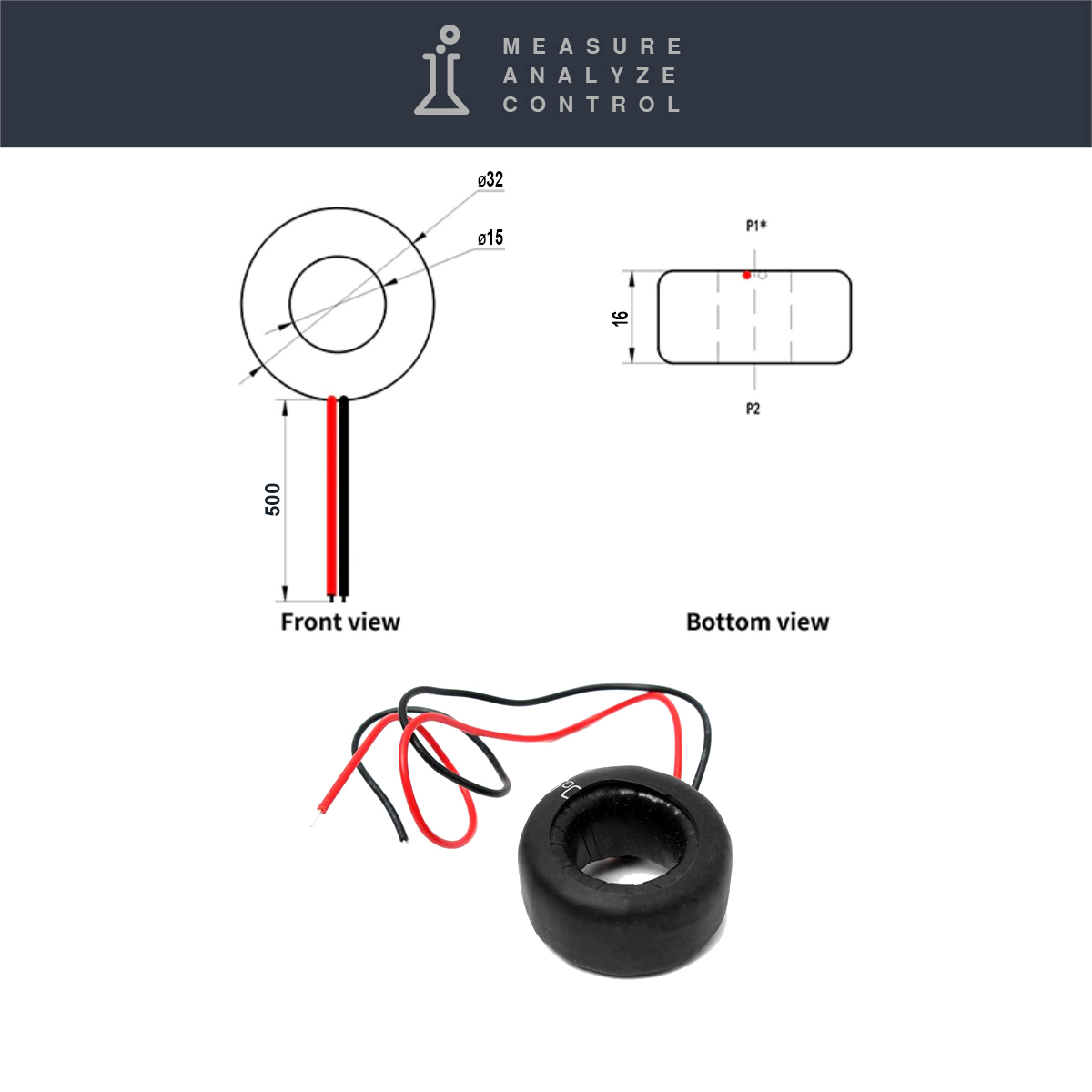

 CT Type / Inner Size  Ring / 15 mm
 High Accuracy
  ±0.5% F.S. (0.5 Class)
 Max. Power at the relay
  < 50W
 Wireless Protocol
  2.4 GHz / IEEE 802.11 (b, g, n)
 GSM Cellular (option)
  4G WiFi USB Router (optional)
 Data Collection interval
  1 minute
 Data Update interval
  5 second
 Storing Data without Internet
  17 days
 Working Range Temperatures
  -40 . . +60 ºС
 Power Supply
  AC 100-240V, 50/60Hz, 0.1A
 Size LхWхD
  90х67х52 mm (3 DIN modules)

Live Demo:

Multilingual Manual: Read online »

Brochure: Download »


Knowledge Base:

Video review "What's in the box?"
