smart-MAIC D103 CT 600A WiFi 3−Lines Energy monitor
3-Lines Energy monitor WiFi CTs Clips 600A smart-MAIC D103-600
Version: D103-600
Current Transformer: Clip 600A
Alternative Products:
Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

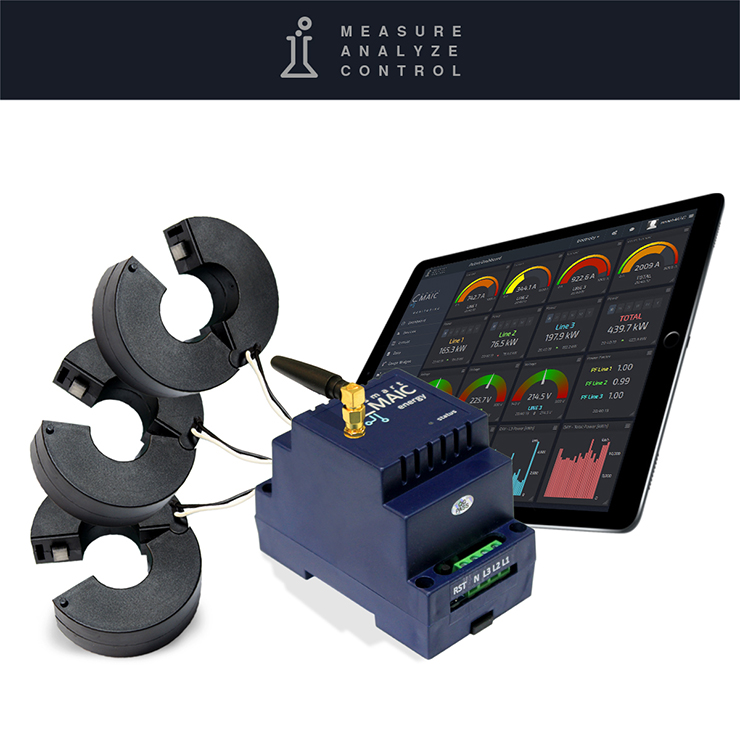

Energy monitor smart-MAIC D103 for 3−Lines grid
with Current Transformer type Clips up to 600A
Smart meter D103-600 produced in Extended version only.

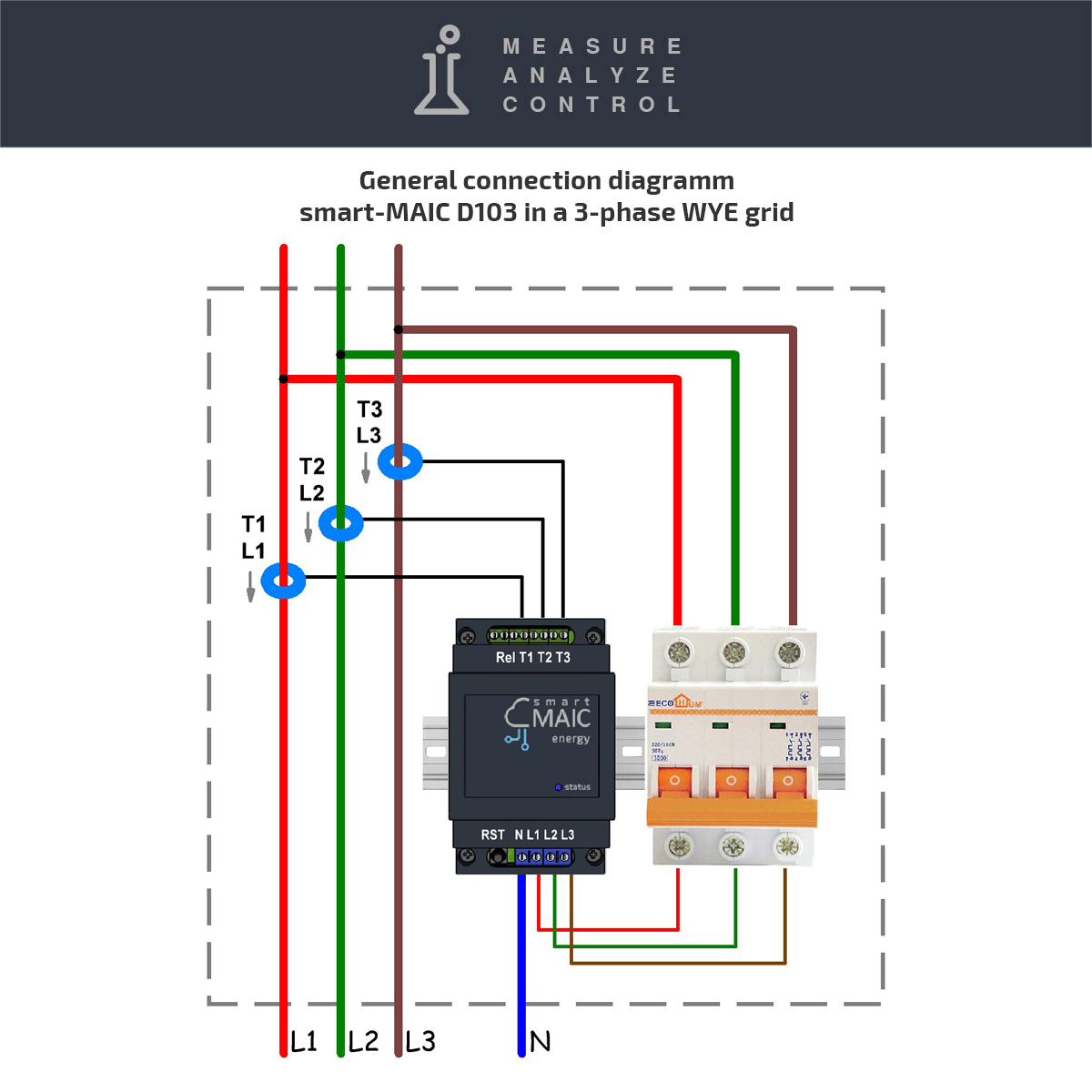

For measurements of large currents and installation on highly loaded lines. This model for 3-phase WYE grid with neutral and uses current transformers up to 600A.
The smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT.
The energy monitor D103-600 is a ready-to-use device and if you read the manual, it's not difficult to install.

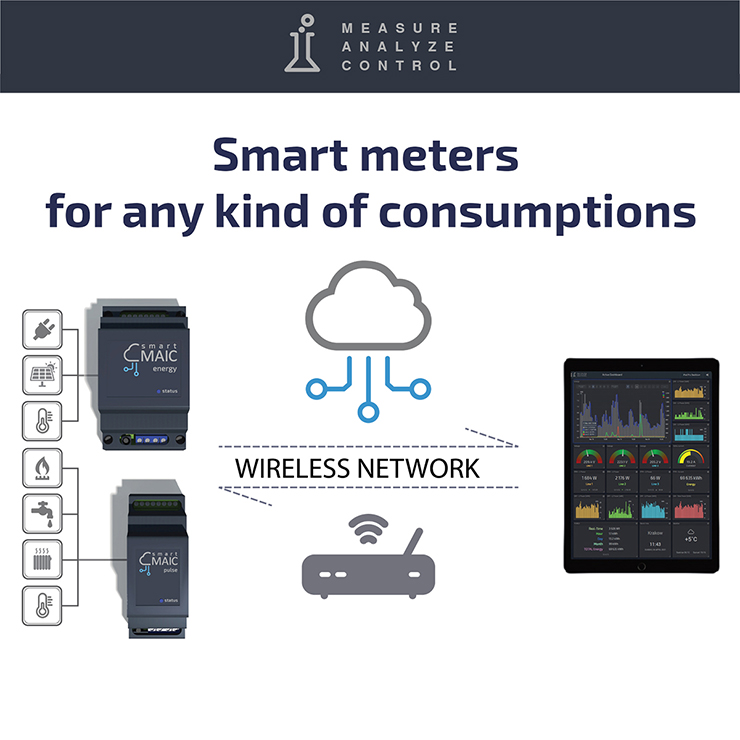

Connect the energy meter to your Wi-Fi point and the data will be sent to the cloud server once a minute.

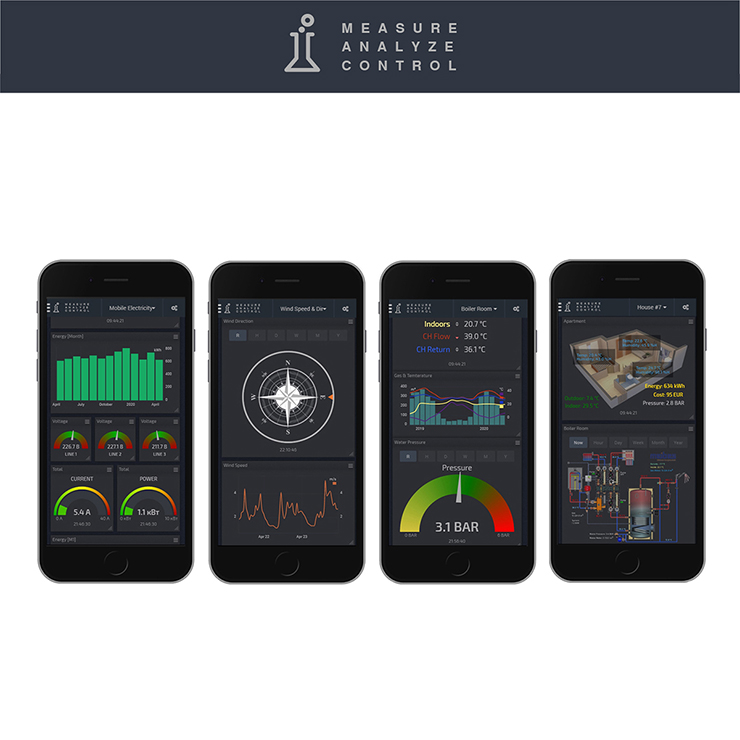

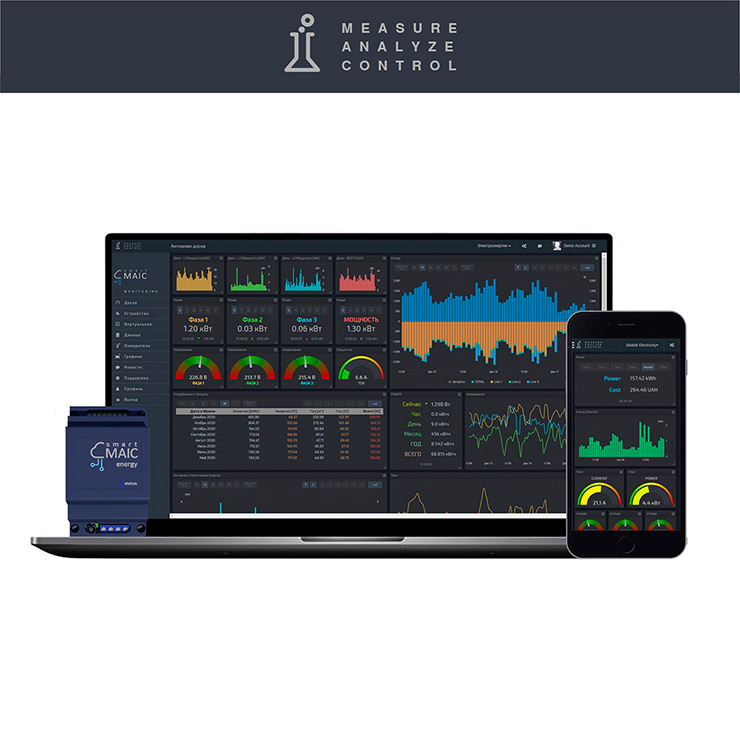

You can analyze electrical energy, power, voltage, current using the Dashboard and with no time limits.
Key features:
- Wi-Fi Wireless interface
- GSM Cellular (optional »)
- Cloud data server and the Dashboard
- One-Minute data analysis and visualization »
- Online / Offline data without time limits
- High accuracy ±0.5% F.S. (0.5 Class)
- Built-in relay with condition control
- API interface for developers
- MQTT remote client
- DIN Rail mounting
Measured Parameters:
- Voltage, [V]
- Current, [A]
- Active Power, [W]
- Reverse Active Power, [rW]
- Active Energy, [Wh]
- Reverse Active Energy, [rWh]
- Power Factor (cosФ), [PF]
Specifications
| Current Transformer Rating | 200mA . . 600A |

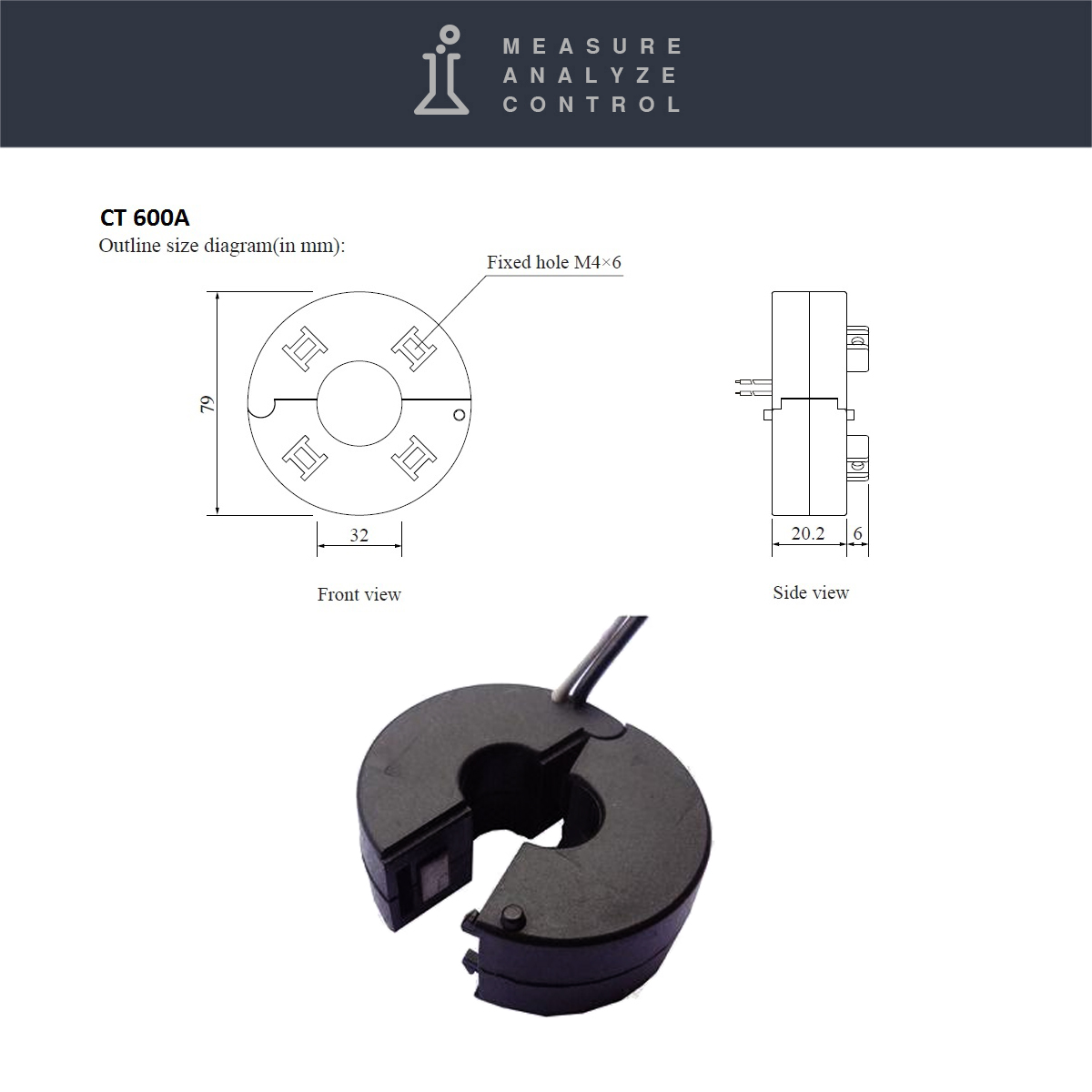

| CT Type / Inner Size | Clips / 32 mm |
| High Accuracy | ±0.5% F.S. (0.5 Class) |
| Max. Power at the relay | < 50W |
| Wireless Protocol | 2.4 GHz / IEEE 802.11 (b, g, n) |
| GSM Cellular (option) | 4G WiFi USB Router (optional) |
| Data Collection interval | 1 minute |
| Data Update interval | 5 second |
| Storing Data without Internet | 17 days |
| Working Range Temperatures | -40 . . +60 ºС |
| Power Supply | AC 100-240V, 50/60Hz, 0.1A |
| Size LхWхD | 90х67х52 mm (3 DIN modules) |
Live Demo: dash.smart-maic.com
Multilingual Manual: Read online »
Brochure: Download »
Website: www.smart-maic.com
Knowledge Base: support.smart-maic.com
Video review "What's in the box?"
