pH Level Sensor, submersible

  • Sensor
  • Output Type

29.90 € 29.90 € 29.900000000000002 EUR w/o VAT

29.90 €

Option not available

This combination does not exist.

Add to Cart

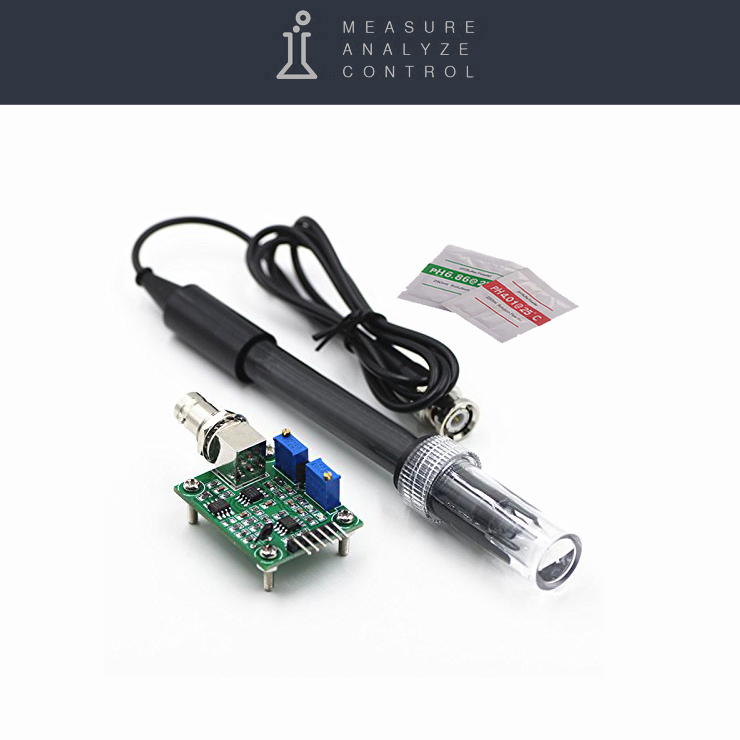

Analog pH Sensor for aquariums, pools and water systems

Sensor: pH Level
Output Type: Analog 0 . . 2.3V

Alternative Products:

Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

PH level sensor for water

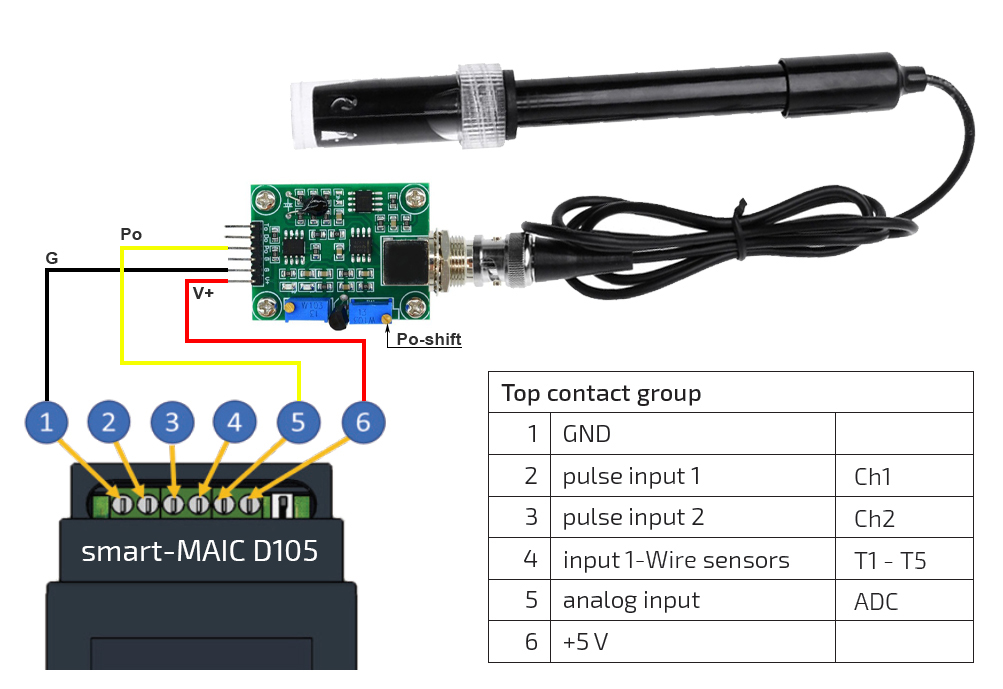

The sensor is connected to analog input of the smart meter smart-MAIC D105.

Wiring diagram and settings in the Knowledge Base »

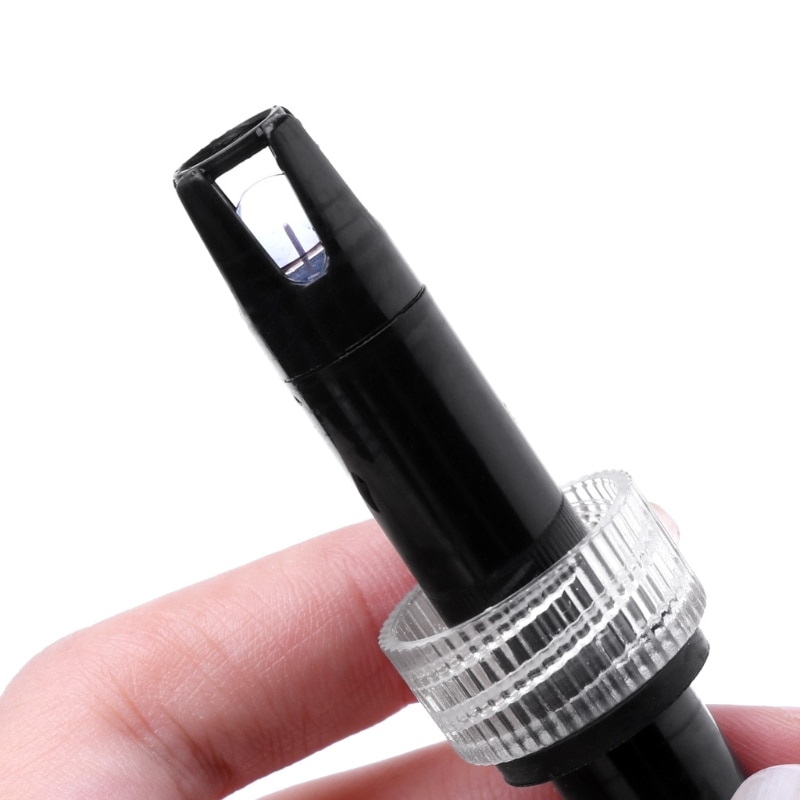

pH submersible sensor for measuring acidity, pH level in aquariums, swimming pools, water systems and water treatment systems.


Supply voltage: 5V DC

Working temperature: 5 .. + 60 °С

Cable length: 80cm

Measuring range: pH 0 .. 14

Measurement accuracy: 0.2pH

Analog output voltage

What is pH?

pH is an abbreviation for 'potential of hydrogen', which is determined by the quantitative ratio of H + and OH- ions in water and reflects the degree of acidity or alkalinity of the medium. The standard pH scale ranges from 0 to 14. The higher the pH, the more alkaline the substance. The lower the pH, the more acidity. pH 7.0 is neutral. While adjusting the pH level in soil or water can help plants thrive, an incorrect pH value can lead to disease or even death. Pure water without impurities has a pH of about 7; acidic aqueous solutions have a pH of less than 7, alkaline - a pH of more than pH7.
