Digital Soil Sensor

Sensor: Temperature / Humidity / Conductivity / pH
Output Type: RS485

Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

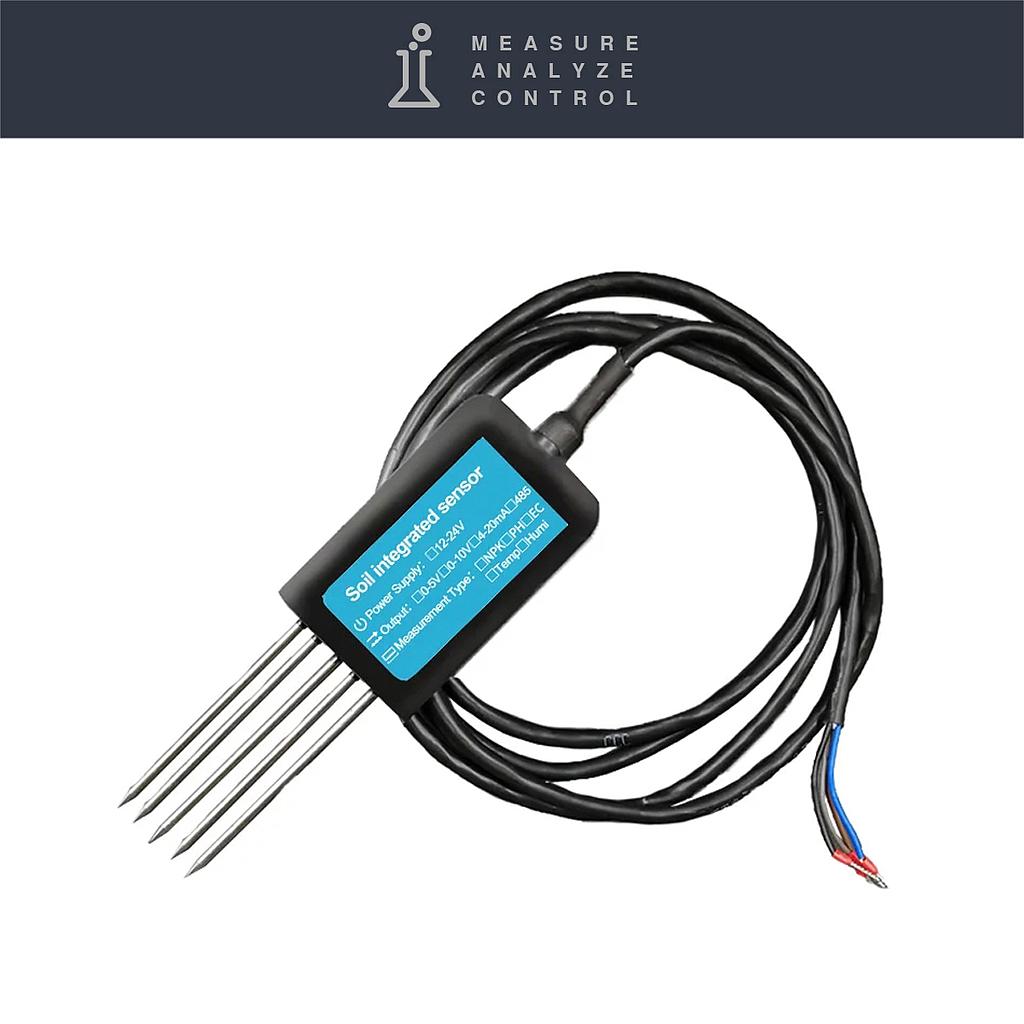

Soil universal 4 in 1 sensor: Temperature - Humidity - Conductivity (EC) - pH

The sensor is connected to RS485 input of the smart-MAIC D105 Extended version.

Built on the principle of measuring capacity instead of electrolysis, due to which the durability and accuracy of readings is achieved, which does not change over time and does not depend on the composition of the soil.


Output type: RS485 Modbus RTU

Power supply: 5-24V DC (not included)

Measurement parameters: soil content

Temperature measurement range: -40°C ... 80°C (Accuracy: ±0.5°C)

Humidity measurement range: 0 ... 100% (Accuracy: ±5%)

Conductivity (EC) measurement range: 0 ... 20000 us/sm (Accuracy: ±5%)

pH measurement range: 3 ... 9 PH (Accuracy: ±0.3 PH)
