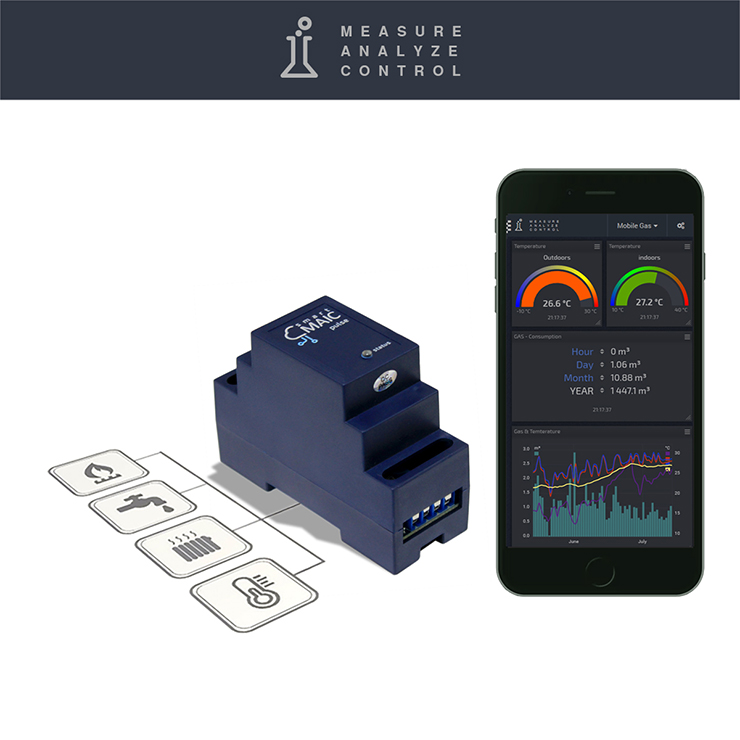

smart-MAIC D105-10 WiFi Universal Pulse counter
Inputs: 2 Pulse, 1-Wire, Analog, RS485
WiFi Antenna: Built-In WiFi
Alternative Products:
Kúpte si teraz a nainštalujte o pár dní
Dva týždne záruka vrátenia peňazí
Záruka jeden rok
smart-MAIC D105-10 WiFi Universal Pulse counter
The universal smart meter D105 with the built-in WiFi antenna allows measuring resource consumption by impulse readings from water meters, gas, electricity and other meters, equipped with pulse outputs. Connect external sensors for measuring temperature, humidity, pressure, CO2, wind, solar, radiation, TDS, pH, etc. With the built-in relay you can organize the automation with conditions.
Measured Inputs and Features:
- two pulse meters for water, gas, heat, fuel, beer, milk ...whatever!
- one 1-Wire input for five temperature sensors or one universal sensor DHT22
- one analog input 0.1-18V DC, for many analog sensors like pressure, depth, light, TDS, pH, voltage, etc.
- RS485 Interface Input/Output mode
- Intervals for API and MQTT: 60 sec
- Working time tracking mode Details »
- Heat meter mode Details »
- Intervals for API and MQTT: 5 sec Details »
- Modbus Server mode Details »
Extended version additional functions:
Key features:
- Monitoring, Analysis and Control for any kind of consumption
- Wi-Fi Wireless interface
- GSM Cellular (optional)
- Free cloud data server
- Dashboard for data analysis and visualization
- One-Minute data detail
- Remote output management
- MQTT remote client
- API interface for developers
- DIN Rail mounting
Specifications
| Pulse input | two |
| Analog input | 0.1V . . 18V DC |
| 1-Wire Input | 5 Temperature sensors or 1 Universal sensor |
| RS485 Interface | Input / Output Mode |
| Special modes | Working time tracking / Heat meter |
| Max. Power at the relay | < 50W |
| Wireless Protocol | 2.4 GHz / IEEE 802.11 (b, g, n) |
| GSM Cellular (option) | 4G WiFi USB Router (optional) |
| Data Collection interval | 1 minute |
| Data Update interval | 5 second |
| Storing Data without Internet | 30 days |
| Working Range Temperatures | -40 . . +60 ºС |
| Power Supply | AC 100-240V, 50/60Hz, 0.1A or 5V DC |
| Size LхWхD | 90х63х34 mm (2 DIN modules) |
