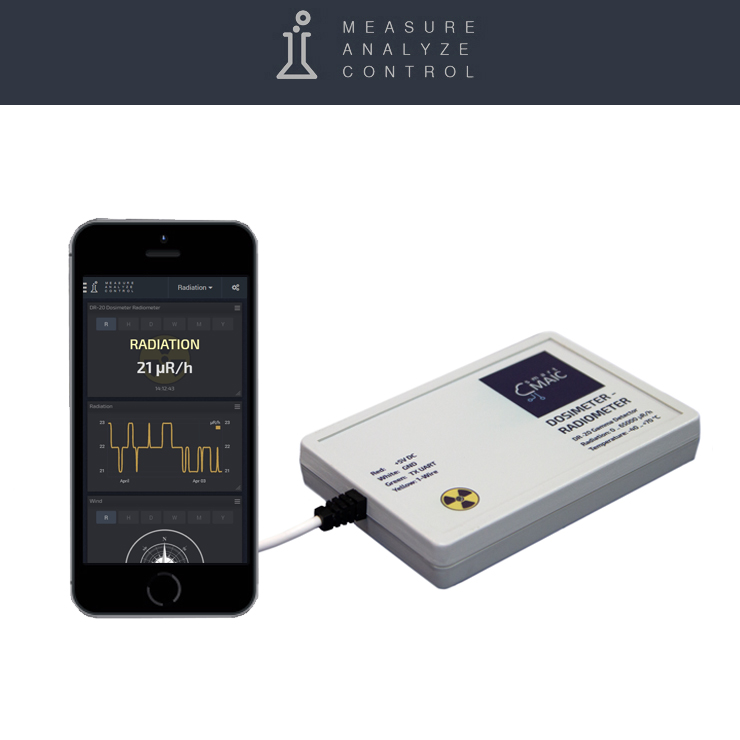

DR-20 Dosimeter-Radiometer and Temperature Sensor

  • Sensor
  • Output Type

79,90 € 79,90 € 79.9 EUR w/o VAT

79,90 €

Možnosť nie je k dispozícii

Táto kombinácia neexistuje.

Pridať do košíka

Gamma Background Levels and Temperature Sensor

Sensor: Radiation / Temperature
Output Type: 1-Wire Digital

Kúpte si teraz a nainštalujte o pár dní
Dva týždne záruka vrátenia peňazí
Záruka jeden rok

Dosimeter-Radiometer Sensor DR-20

The sensor is connected to RS485 interface of the smart meter smart-MAIC D105.

Wiring diagram and settings in the Knowledge Base »

The radiation level sensor DR-20 is designed for remote measurement of the gamma background level, accumulated radiation dose, and ambient temperature in real time.


Radiation background measurement range: 0 .. 65000 μR/h

Temperature measuring range: -40°C .. 70°C

Output Signal: D105 1-Wire / TX UART

Data refresh period: 10 seconds

Operating temperature: -40°C .. 70°C

Working humidity: 0 .. 95%RH

Dimensions DxHxW: 125x20x85mm

Power: DC 5V

Weight: 120g

RS485 Interface

Dashboard data:

T1 – temperature [°C];

T2 – microroentgen per hour [μR/h];

T3 – pulses (particles) per minute;
