DR-20 Dosimeter-Radiometer and Temperature Sensor

  • Sensor
  • Output Type

83.00 € 83.00 € 83.0 EUR w/o VAT

83.00 €

Option not available

This combination does not exist.

Add to Cart

Gamma Background Levels and Temperature Sensor

Sensor: Radiation / Temperature
Output Type: 1-Wire Digital


Buy now and install in a couple of days
Two weeks money-back guarantee
One year warranty

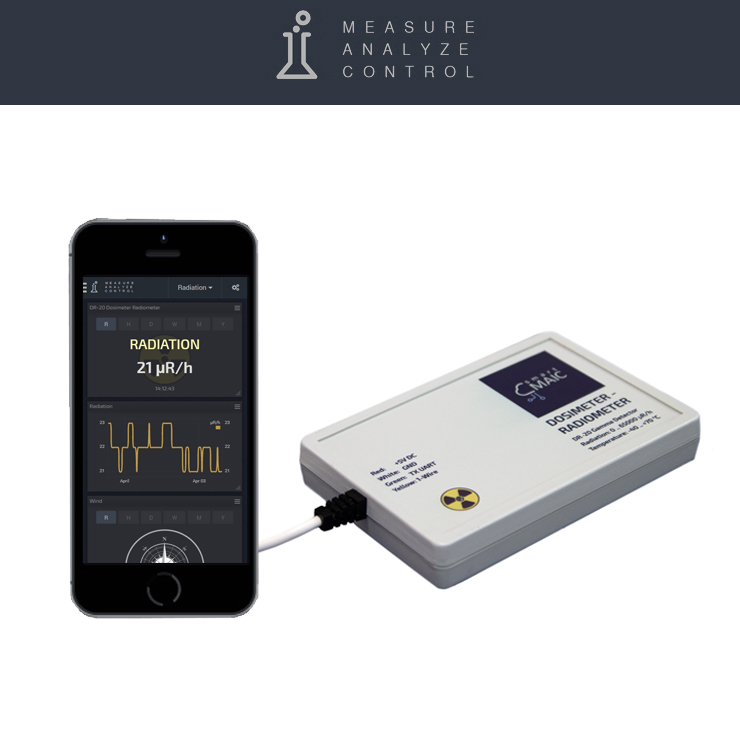

Dosimeter-Radiometer Sensor DR-20

The sensor is connected to RS485 interface of the smart meter smart-MAIC D105.

Wiring diagram and settings in the Knowledge Base »

The radiation level sensor DR-20 is designed for remote measurement of the gamma background level, accumulated radiation dose, and ambient temperature in real time.


Specifications:

Radiation background measurement range: 0 .. 65000 μR/h

Temperature measuring range: -40°C .. 70°C

Output Signal: D105 1-Wire / TX UART

Data refresh period: 10 seconds

Operating temperature: -40°C .. 70°C

Working humidity: 0 .. 95%RH

Dimensions DxHxW: 125x20x85mm

Power: DC 5V

Weight: 120g

RS485 Interface

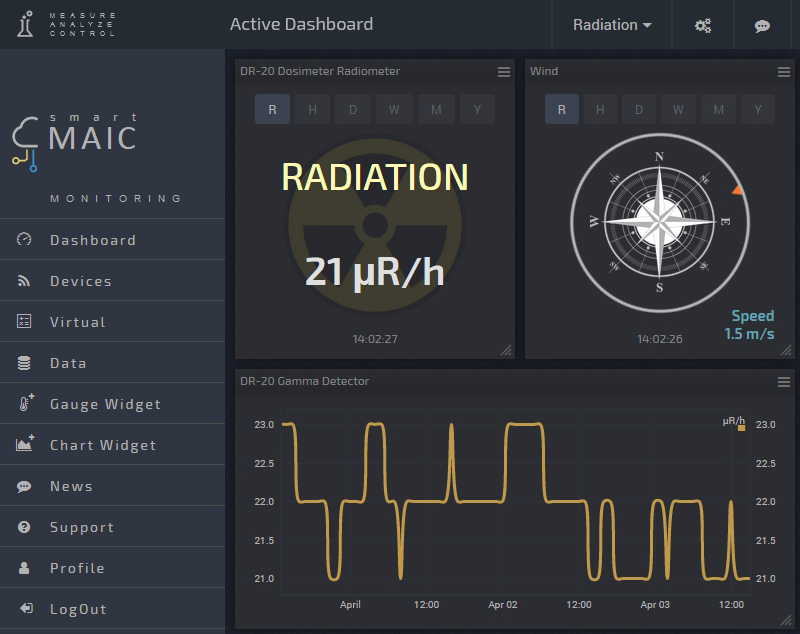

Dashboard data:

T1 – temperature [°C];

T2 – microroentgen per hour [μR/h];

T3 – pulses (particles) per minute;
