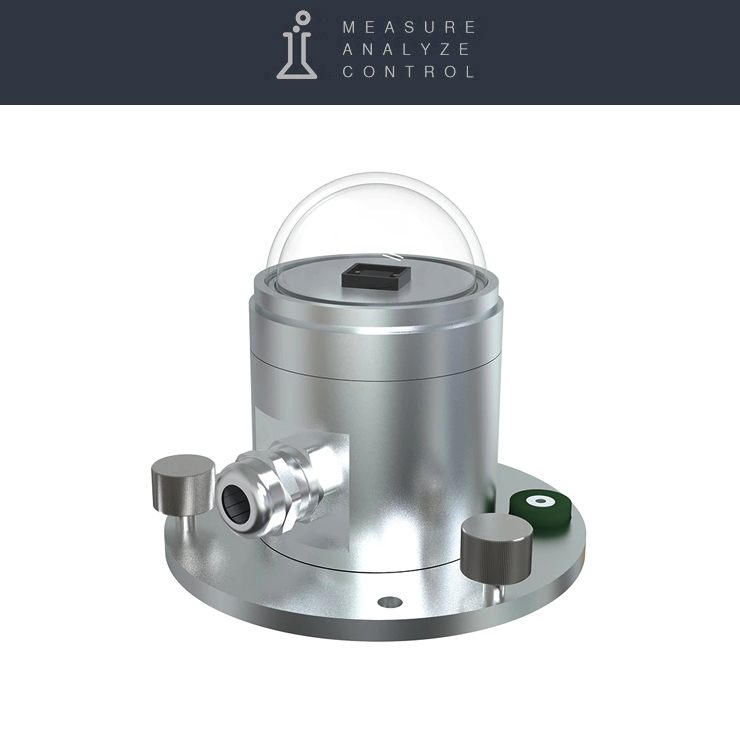

Solar Radiation Sensor

  • Sensor
  • Output Type

199,00 € 199,00 € 199.0 EUR w/o VAT
Free Shipping within the EU

199,00 €

Možnosť nie je k dispozícii

Táto kombinácia neexistuje.

Pridať do košíka

Sensor for measuring the level of Solar Irradiance

Sensor: Solar Radiation
Output Type: RS485



Kúpte si teraz a nainštalujte o pár dní
Dva týždne záruka vrátenia peňazí
Záruka jeden rok

Solar Irradiation Sensor

The sensor is connected to RS485 input of the smart-MAIC D105 G4 Extended and above version.

Solar radiation is the main source of energy for all physical and geographical processes occurring on the earth's surface and in the atmosphere; it is measured by the power of the energy it carries per unit of surface area (Watt/m2).


Specifications:

Measuring range: 0 . . 2000W/m2

Spectral range: 0,3 . . 3μm

Resolution : 1W/m2

Interface: RS485 Modbus

Nonlinear: <±2%

Annual stability: <±2%

Cosine response: <±10%

Working humidity: 0% . . 100%RH

Working temperature: -40°C . . +60°C

Power supply: 12 . . 24V DC (not included)
