Solar Radiation Sensor

  • Sensor
  • Output Type

199.00 € 199.00 € 199.0 EUR w/o VAT
Free Shipping within the EU

199.00 €

Option not available

This combination does not exist.

Add to Cart

Sensor for measuring the level of Solar Irradiance

Sensor: Solar Radiation
Output Type: Analog 0 .. 10V


Buy now and install in a couple of days
Two weeks money-back guarantee
One year warranty

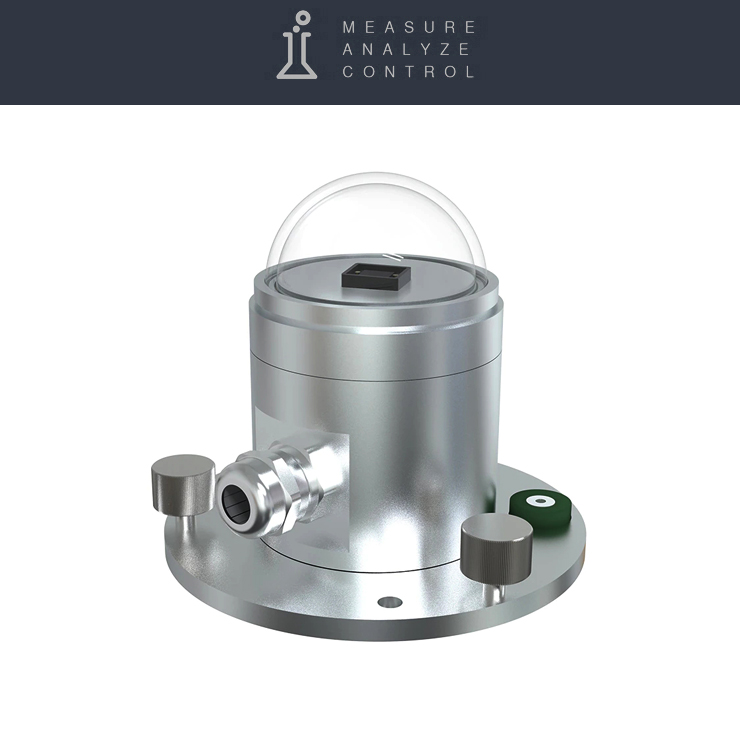

Solar Irradiation Sensor

The sensor is connected to analog input of the smart meter smart-MAIC D105.

Solar radiation is the main source of energy for all physical and geographical processes occurring on the earth's surface and in the atmosphere; it is measured by the power of the energy it carries per unit of surface area (Watt/m2).


Specifications:

Spectral range: 0,3 . . 3μm

Measuring range: 0 . .1800W/m2

Resolution :1W/m2

Analog Output: 0 . . 10V

Nonlinear: <+-2%

Annual stability: <+-2%

Cosine response: <+-10%

Working humidity: 0% . . 100%RH

Working temperature: -40°C . . +60°C

Power supply: 24V DC
