Temperature/ Humidity/ Pressure Sensor D290
RS485 Modbus RTU Sensor D290: Temperature/Humidity/Atm. pressure
Sensor: Temperature / Humidity / Pressure
Output Type: RS485
Alternative Products:
Kúpte si teraz a nainštalujte o pár dní
Dva týždne záruka vrátenia peňazí
Záruka jeden rok

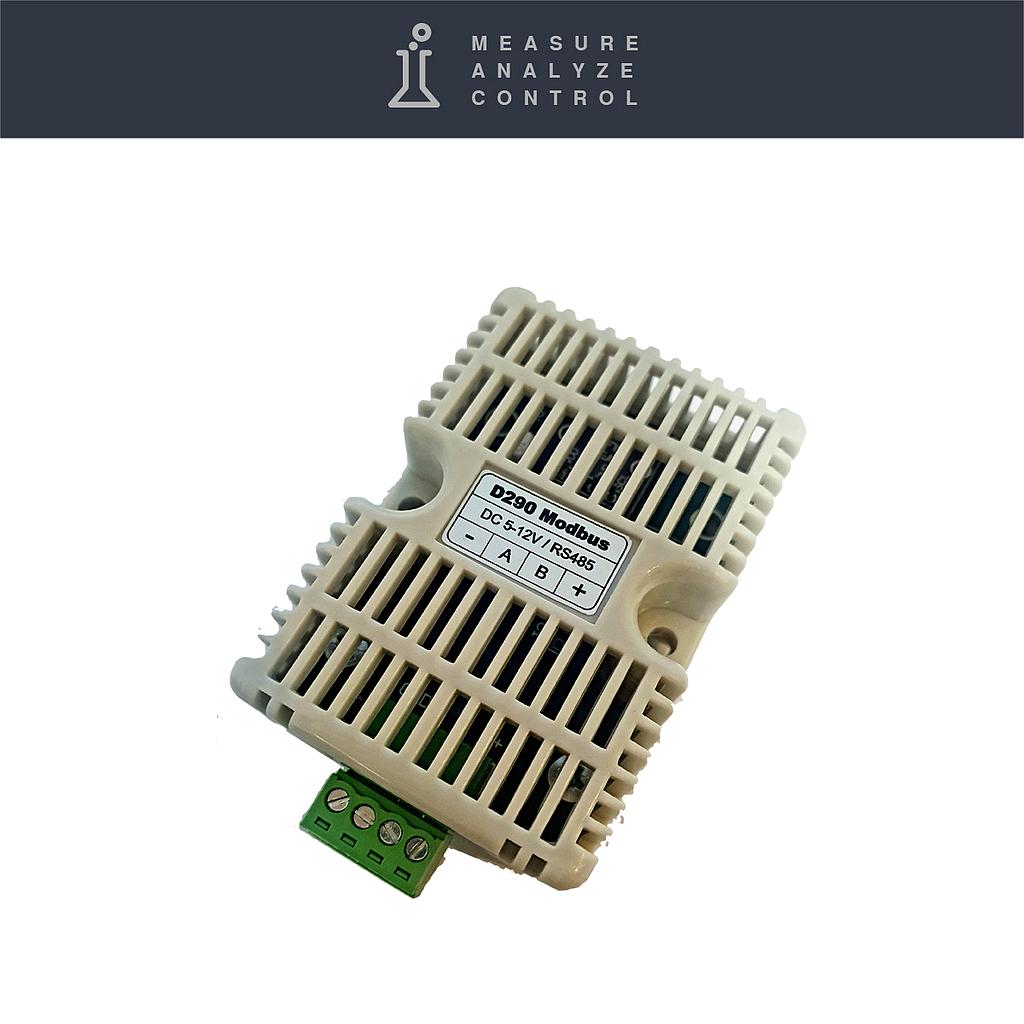

Temperature, Humidity and Atmosphere pressure Sensor D290 RS485 Modbus RTU
The sensor is connected to the RS485 input of the smart meter smart-MAIC D105 G3 and above.
Datasheet, wiring diagram and settings in the Knowledge Base »
High accuracy digital temperature, Humidity and Atmosphere pressure sensor D290 is factory calibrated and features low power consumption.
Specifications:
Temperature measurement range: -40 .. +85 °C
Atmospheric pressure measurement range: 300 .. 1100 hPa
Humidity measurement range: 0 .. 99 %RH
Temperature measurement accuracy: ±1 °C
Pressure measurement accuracy: ±1 Pa
Humidity measurement accuracy: ±3 %RH
Supply voltage: 5 - 12V
Dimensions: 65 x 45 x 30 mm
RS485 Modbus RTU interface
Dashboard data:
T1 - Temperature, [°C]
T2 - Humidity, [%RH]
T3 - Atmospheric pressure, [hPa]
Website: www.smart-maic.com
Live Demo: dash.smart-maic.com
