Temperature/ Humidity/ Pressure Sensor D290

  • Sensor
  • Output Type

11.90 € 11.90 € 11.9 EUR w/o VAT

11.90 €

Option not available

This combination does not exist.

Add to Cart

RS485 Modbus RTU Sensor D290: Temperature/Humidity/Atm. pressure

Sensor: Temperature / Humidity / Pressure
Output Type: RS485


Alternative Products:


Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

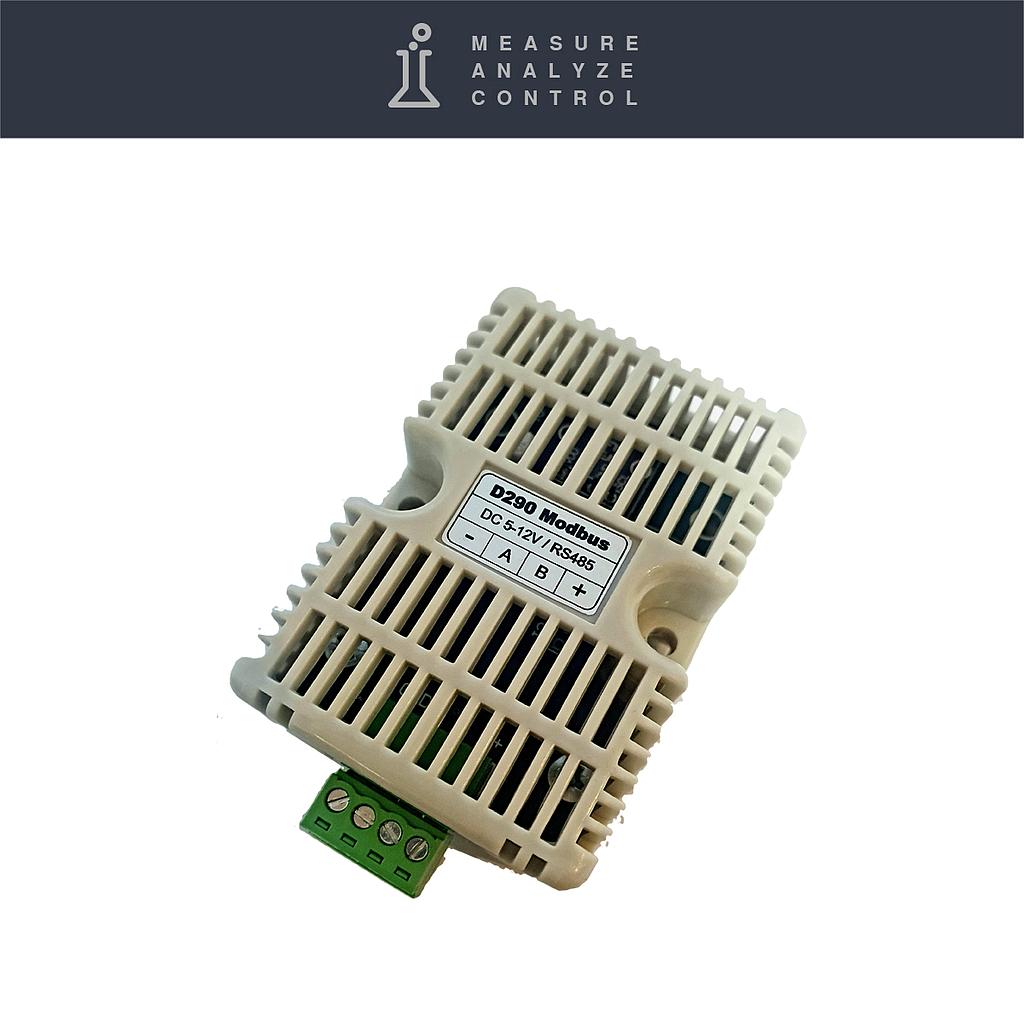

Temperature, Humidity and Atmosphere pressure Sensor D290 RS485 Modbus RTU

The sensor is connected to the RS485 input of the smart meter smart-MAIC D105.

Datasheet, wiring diagram and settings in the Knowledge Base »

High accuracy digital temperature, Humidity and Atmosphere pressure sensor D290 is factory calibrated and features low power consumption.


Specifications:

Temperature measurement range: -40 .. +85 °C

Atmospheric pressure measurement range: 300 .. 1100 hPa

Humidity measurement range: 0 .. 99 %RH

Temperature measurement accuracy: ±1 °C

Pressure measurement accuracy: ±1 Pa

Humidity measurement accuracy: ±3 %RH

Supply voltage: 5 - 12V

Dimensions: 65 x 45 x 30 mm

RS485 Modbus RTU interface


Dashboard data:

T1 - Temperature, [°C]

T2 - Humidity, [%RH]

T3 - Atmospheric pressure, [hPa]
