Carbon dioxide CO2 Sensor RS485 Interface

  • Sensor
  • Output Type

35.00 € 35.00 € 35.0 EUR w/o VAT

35.00 €

Option not available

This combination does not exist.

Add to Cart

Digital Carbon dioxide CO2 Sensor up to 5000ppm

Sensor: CO2 Carbon dioxide
Output Type: RS485


Buy now and install in a couple of days
Two weeks money-back guarantee
One year warranty

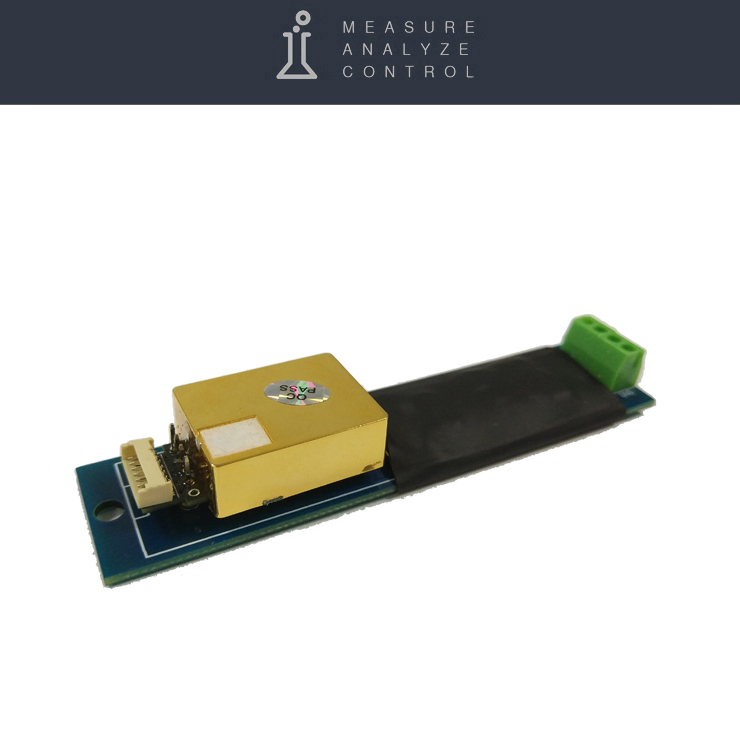

CO2 Carbon dioxide sensor

The sensor is connected to RS485 input of the smart meter smart-MAIC D105.

The sensor measures the carbon dioxide content of CO2 0-5000ppm (number of CO2 particles per million air particles).


Specifications:

Supply voltage: 5V

Operating temperature: 0...+50°C

Operating humidity: 0...90%RH

Working current: less than 60mA; peak 150mA.

Measuring range: 0 .. 5000ppm

Measurement accuracy: ±50ppm

Warm up time: 3 min

RS485 Interface


Connection (pinout) RS485:

| vcc | - Power supply + 5V

| A | - A RS485

| B | - B RS485

| GND | - Ground GND
