smart-MAIC D101-1 CT Ring WiFi 1−Line Energy monitor

  • Version
  • Current Transformer

63.00 € 63.00 € 63.0 EUR w/o VAT

63.00 €

Option not available

This combination does not exist.

Add to Cart

1-Line Energy monitor WiFi CT Ring smart-MAIC D101-1

Current Transformer: Ring 100A


Alternative Products:


Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

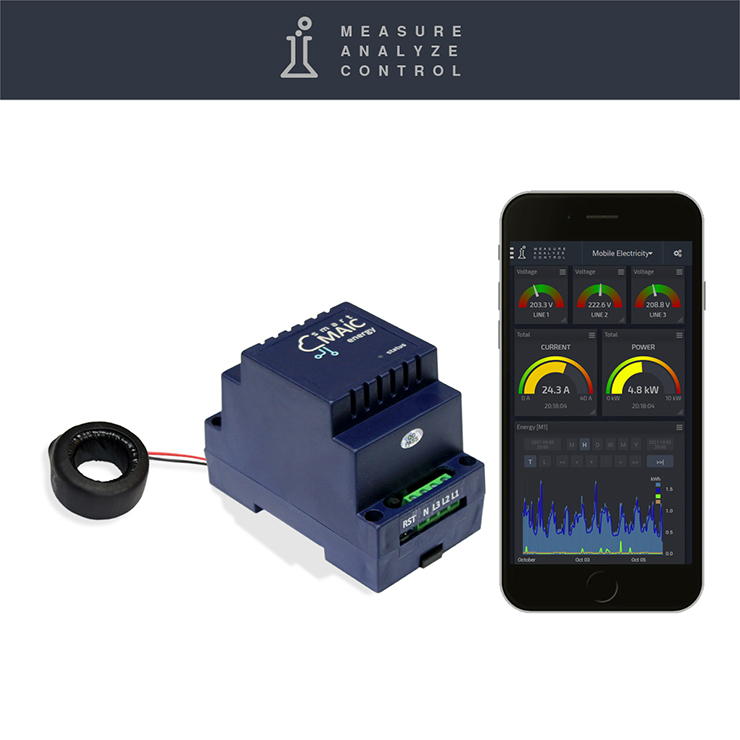

Energy monitor smart-MAIC D101 for 1−Line grid
with Current Transformer type Ring up to 100A


The energy monitor is a ready-to-use device for 1−phase grid and uses external current transformer up to 100A type ring. If you read the manual, it's not difficult to install.
Connect the energy meter to your Wi-Fi point and the data will be sent to the cloud server once a minute.
You can analyze electrical energy, power, voltage, current using the Dashboard and with no time limits.


Smart meter D101 produced in Standard and Extended version.

In the Extended version, the smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT.
In the Standard version, the device measures one-way power and 1 minute data intervals for API and MQTT.


Key features:

  • Wi-Fi Wireless interface
  • GSM Cellular (optional »)
  • Cloud data server and the Dashboard
  • One-Minute data analysis and visualization »
  • Online / Offline data without time limits
  • High accuracy ±0.5% F.S. (0.5 Class)
  • Built-in relay with condition control
  • API interface for developers
  • MQTT remote client
  • DIN Rail mounting


Measured Parameters:
  • Voltage, [V]
  • Current, [A]
  • Active Power, [W]
  • Reverse Active Power, [rW] (Extended ver.)
  • Active Energy, [Wh]
  • Reverse Active Energy, [rWh] (Extended ver.)
  • Power Factor (cosФ), [PF]


Specifications

 Current Transformer Rating
  50mA . . 100A
 CT Type / Inner Size  Ring / 15 mm
 High Accuracy
  ±0.5% F.S. (0.5 Class)
 Max. Power at the relay
  < 50W
 Wireless Protocol
  2.4 GHz / IEEE 802.11 (b, g, n)
 GSM Cellular (option)
  4G WiFi USB Router (optional)
 Data Collection interval
  1 minute
 Data Update interval
  5 second
 Storing Data without Internet
  30 days
 Working Range Temperatures
  -40 . . +60 ºС
 Power Supply
  AC 100-240V, 50/60Hz, 0.1A
 Size LхWхD
  90х67х52 mm (3 DIN modules)


Live Demo: dash.smart-maic.com

Multilingual Manual: Read online »

Website: www.smart-maic.com

Knowledge Base: support.smart-maic.com

Video review "What's in the box?"
