Analog Light Sensor, sensitivity up to 570nm

Sensor: Light
Output Type: Analog 0 .. 5V


Alternative Products:


Buy now and install in a couple of days
Two weeks money-back guarantee
Two years warranty

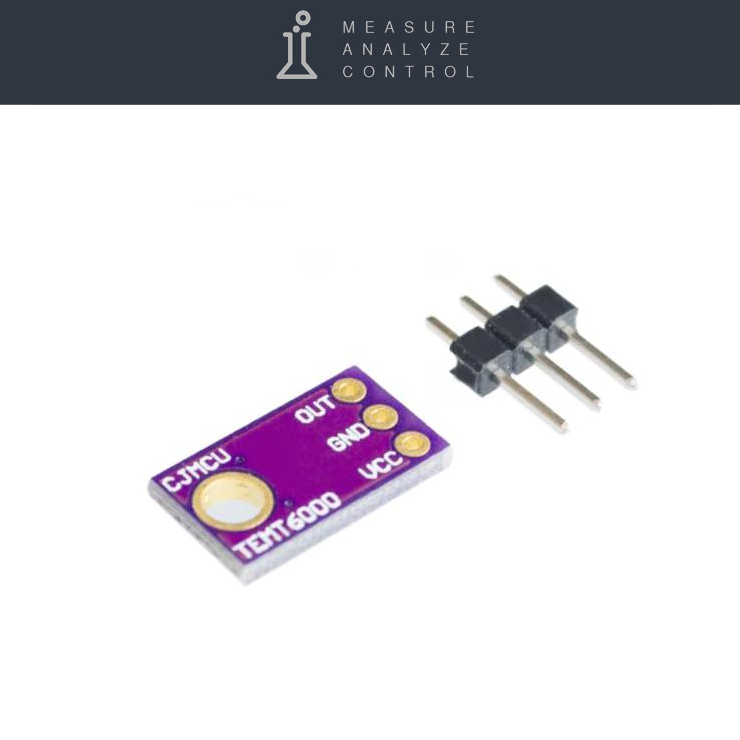

Light sensor TEMT6000

The sensor is connected to analog input of the smart meter smart-MAIC D105.

TEMT6000 light sensor, with a maximum light wave sensitivity up to 570nm, has a wide sensitivity angle from plus to minus 60°. The output voltage is light dependent.


Specifications:

Supply voltage: 5V DC

Working temperature: -40°С . . + 85°С


The formula for converting the voltage at the d.ADC input to lux [lx] will take the form:

- install an application on your phone to measure the illumination in suites;
- put them side by side and take two measurements: V1 = lx1 and V2 = lx2
- taking into account the linear dependence, we get a simple equation of a straight line by two points here online

The formula for converting the voltage at the d.ADC input to lux [lx] will take the form:

(- (V1 * lx2 - V2 * lx1) - d.ADC * (lx1 - lx2)) / (V2 - V1)

Write this formula in the widget settings on the Dashboard, substituting the appropriate values: V1, V2, lx1, lx2;
Where d.ADC is the analog input voltage measured by the D105.
