Temperature/ Humidity Sensor DHT22

  • Sensor
  • Output Type

6.00 € 6.00 € 6.0 EUR w/o VAT

6.00 €

Option not available

This combination does not exist.

Add to Cart

1-Wire Temperature and Humidity Sensor DHT22

Sensor: Temperature / Humidity
Output Type: 1-Wire Digital


Alternative Products:


Buy now and install in a couple of days
Two weeks money-back guarantee
One year warranty

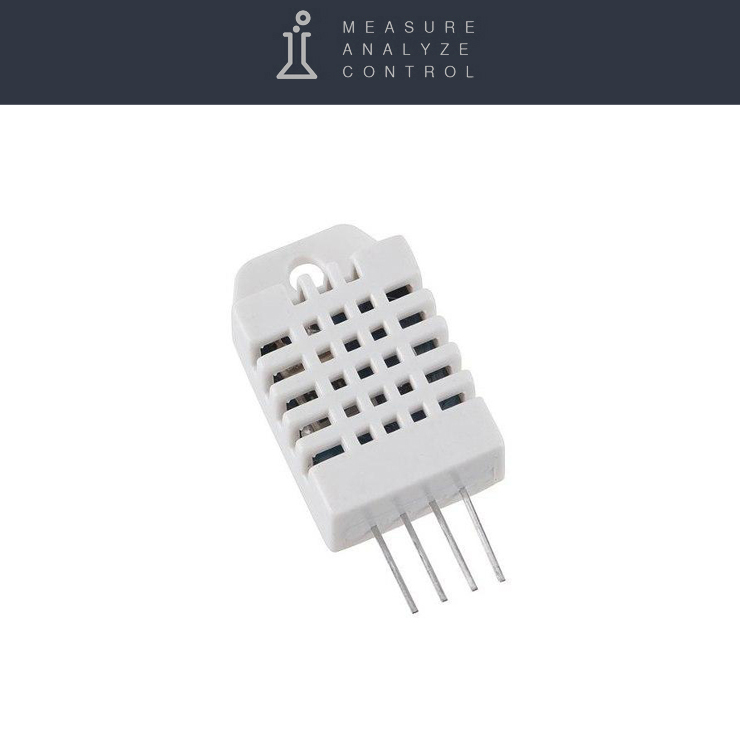

Temperature and Humidity Sensor DHT22

The sensor is connected to the smart meter smart-MAIC D105.

Wiring diagram and settings in the Knowledge Base »

High accuracy digital temperature and humidity sensor DHT22 is factory calibrated and features low power consumption.


Specifications:

Humidity measurement range: 0 .. 100 %RH

Temperature measurement range: -40 . . +80 °C

Humidity measurement accuracy: ±2 %RH

Temperature measurement accuracy: ±0.5 °C

Supply voltage: 3.6-6V

Dimensions: 17 x 13 x 5 mm

1-wire interface

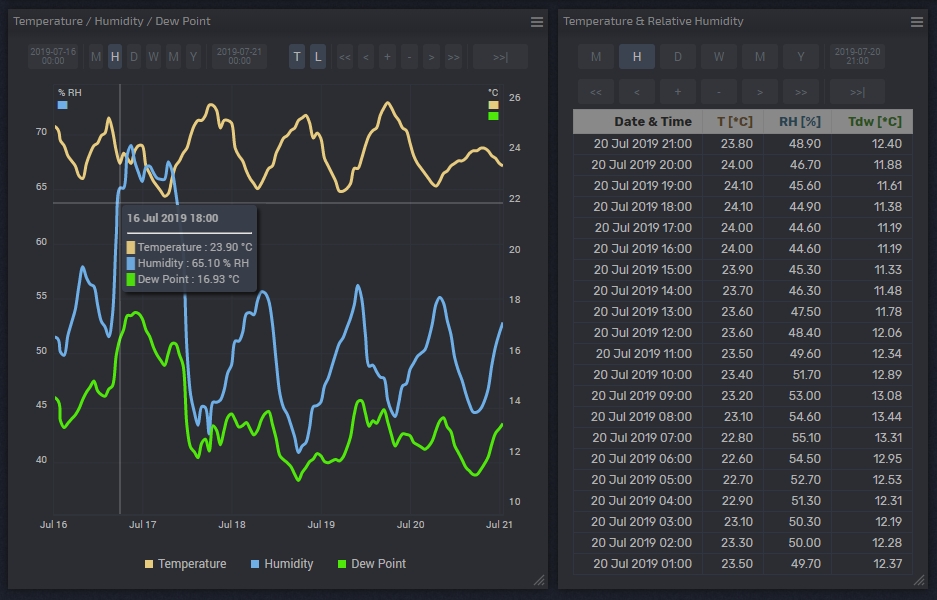

Dashboard data:

T1 - Temperature, [°C]

T2 - Humidity, [%RH]
