Wind Direction Sensor, angle step 360°/16

Táto kombinácia neexistuje.

Pridať do košíka

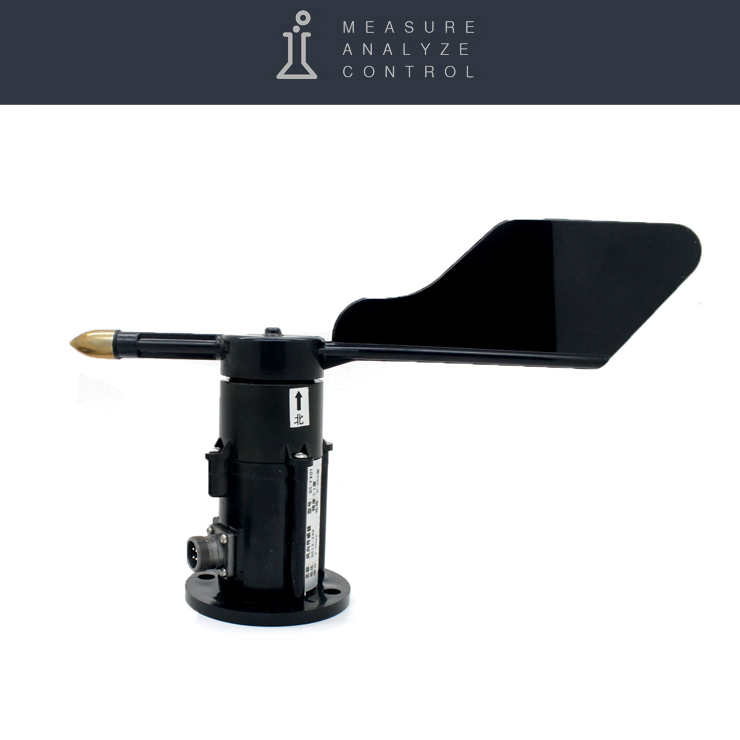

Wind Direction Sensor with 16 steps of 22.5°

Sensor: Wind Direction
Output Type: RS485

Alternative Products:

Kúpte si teraz a nainštalujte o pár dní
Dva týždne záruka vrátenia peňazí
Záruka jeden rok

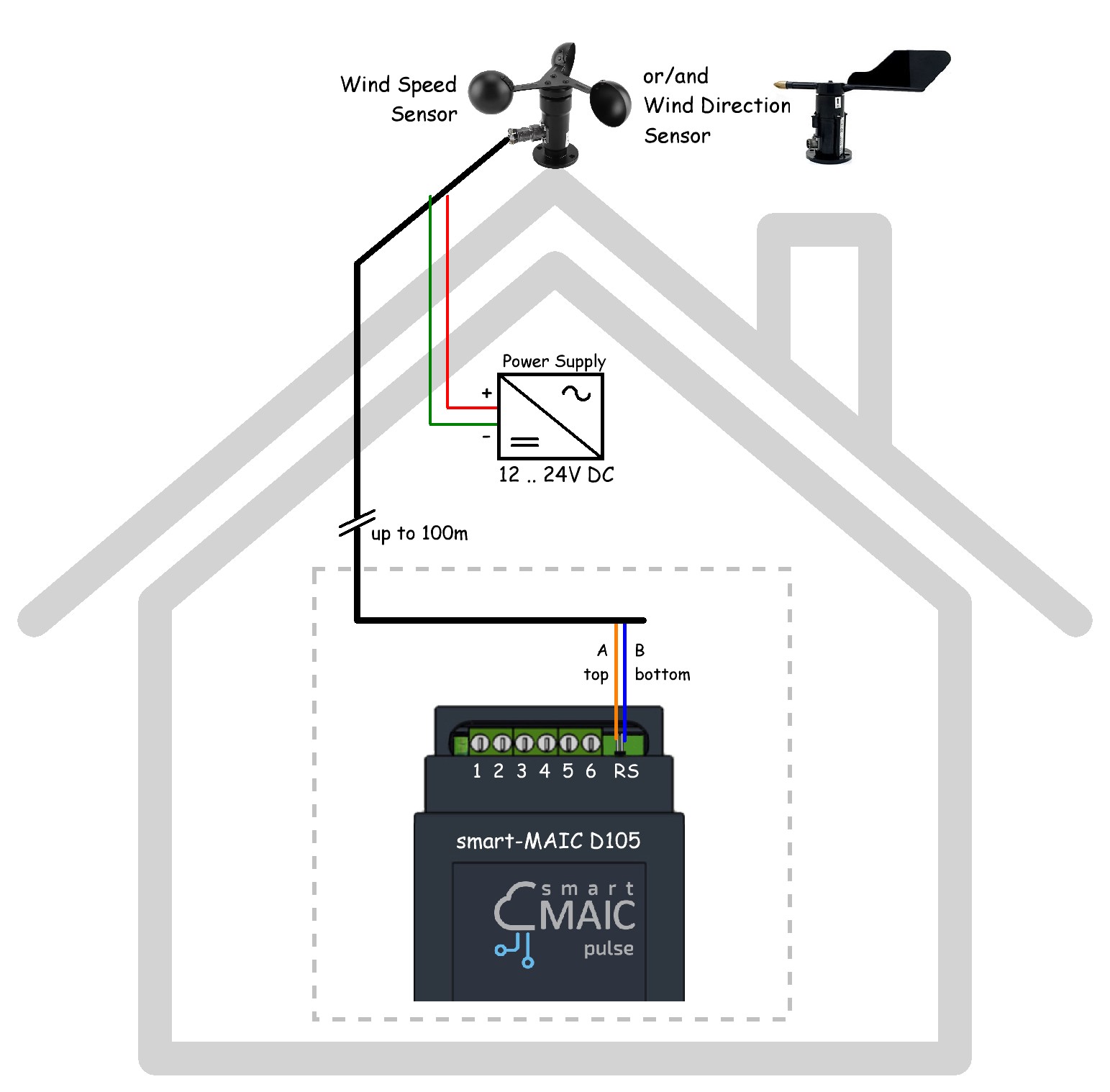

The sensor is connected to RS485 interface of the smart meter smart-MAIC D105.

Wiring diagram and settings in the Knowledge Base »

Material: Aluminum alloy

Measuring range: 0-360° in 22.5° steps

Wind direction value: 0 -16 (0 degrees North)

Accuracy: ±3%

Supply voltage: 12 ... 24V DC (not included)

Working temperature: -20°С .. +80°С

Operating humidity: up to 100% RH

Protection level: IP45

RS485 Interface

T5 – Wind Derection;
